Forged Dynalite Big Brake Front Brake Kit

WIL-140-11074
Not rated yet
Free shipping - US Lower 48 Only
    • 7% less
    Market price: $1049.57, you save $72.46
  • $977.11
Qty:

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

These systems fit the factory DRUM spindles with no modifications.  Factory DISC spindles will need the 3 dust shield mounting holes drilled and tapped to accommodate the caliper mounting brackets.  Refer to each products instruction manual for a detailed explanation.

Brake hoses NOT included.  Use WIL-220-9195.

Wheel ClearanceAssembly Instructions

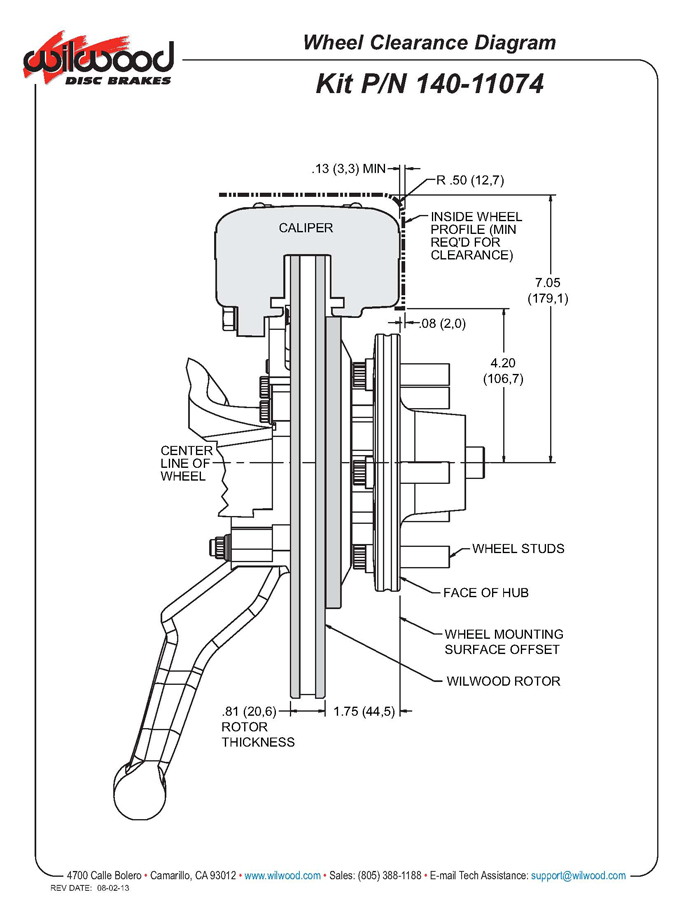

Wheel Clearance Diagram
Wheel Clearance Diagram



Assembly Instructions
Caution
CautionTHIS BRAKE KIT HAS A HUB OFFSET OF: +.09
This Hub Offset will move the wheels outward from the fender by this amount on each side of the vehicle
Kit Summary
OE Hub Offset:+.09
Spindle Type:Factory Drum & Disc Spindle
Mount Type:Lug
Caliper Type:4 - Black Powder Coat
Rotor Diameter & Thickness:12.19" x .810"
Min Wheel Diameter Req'd*:15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Compatible Vehicles for this Brake Kit:

Ford Fairlane 1970 Disc Brake Spindle

Ford Fairlane 1970 Drum Brake Front Spindle

Ford Falcon 1970 Disc Brake Spindle

Ford Falcon 1970 Drum Brake Front from 8/25/69

Ford Maverick 1970 Drum Brake Front from 8/25/69

Ford Maverick 1971-1974 Drum Brake Front Spindle

Ford Mustang 1970 Disc Brake Front Except GT350 & 500

Ford Mustang 1973 Disc Brake Front Spindle

Ford Mustang 1971-1972 Disc Brake Spindle

Ford Mustang 1970-1973 Drum Brake Front Spindle

Ford Ranchero 1970-1971 Disc Brake Spindle

Ford Ranchero 1970 Drum Brake Front Spindle

Ford Torino 1970-1971 Disc Brake Spindle

Ford Torino 1970-1971 Drum Brake Front Spindle

Mercury Comet 1970-1971 Disc Brake Spindle

Mercury Comet 1970-1973 Drum Brake Front Spindle

Mercury Cougar 1973 Disc Brake Front Spindle

Mercury Cougar 1970-1972 Disc Brake Spindle

Mercury Cougar 1970-1972 Drum Brake Front Spindle

Mercury Cyclone 1970-1971 Disc Brake Spindle

Mercury Cyclone 1970-1971 Drum Brake Front Spindle

Mercury Montego 1970-1971 Disc Brake Spindle

Mercury Montego 1970-1971 Drum Brake Front Spindle
